STR Ronse brand originates from Germany. At first, it was a small factory focusing on the processing of machine tool parts. On the basis of inheriting and carrying forward its craftsman's technology, through continuous innovation, development and growth, it has today's str Ronse brand. As an enterprise specializing in rack and pinion design, R & D and production, STR Ronse sells high-quality top products all over the world. During its development, the company always adheres to the requirements of German production management, applies the world's top production equipment, continuously improves technology, and improves quality and efficiency.

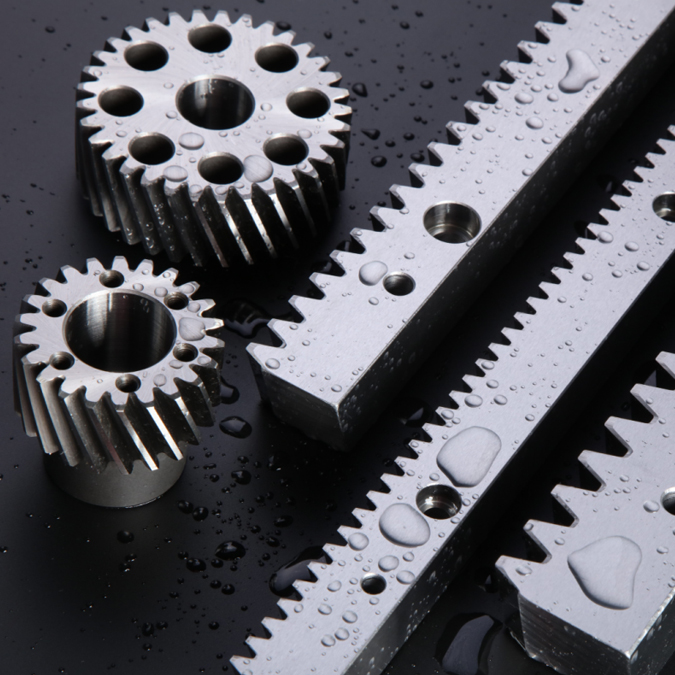

As an expert in the field of transmission, STR Ronse can provide various types of racks with a stable monthly output of more than 20000. The rack accuracy covers din6s-din8, and the modulus includes 1.5-8. It has straight and helical teeth with various processes such as milling, grinding and quenching. Combined with various styles of gears and reducers, it can provide targeted application schemes suitable for various fields and working conditions.
Application fields of STR Ronse:
Din6s level: gantry machining center; Laser cutting machine.
Din6: wood, plastic, composite and aluminum processing machine tools; Laser cutting machine; Plasma cutting machine; Water cutting equipment; Elbow system; Truss; Ground rail.
The utility model has the advantages of infinite splicing, high-speed operation, large bearing capacity, stable operation, high transmission precision, high transmission efficiency, large transmission torque and long service life. It can be used for occasions with high speed, large stroke, precision requirements and accurate positioning.
The grinding rack has the advantages of high positioning accuracy, low operation noise, stable operation and long service life.
Application Industry: laser cutting machine, gantry machine tool, aluminum profile processing center, non-standard automatic machinery
The milling rack has the characteristics of low price and long service life
Application industry
Truss, ground rail, woodworking machinery, non-standard automation machinery
Racks for Ground Teeth Surface. High Precision / Helical Teeth
Steel 1.0503 (C45) Pressure Angle 20°
High Frequency Quenching 50-55 HRC Quality 6
Helix angle Right Rotation 19°31'42"
| The order no. | Module | LI | L2 | z | b | ha | h | f+0.5 | a | l | h1 | d1 | d2 | t | a1 | l1 | d3 | kg |
| 1902.105 | 2 | 500 | 8.5 | 75 | 24 | 24 | 22 | 2 | 62.5 | 125 | 8 | 7 | 11 | 7 | 31.7 | 436.6 | 5.7 | 2.1 |
| 1902.101 | 2 | 1000 | 8.5 | 150 | 24 | 24 | 22 | 2 | 62.5 | 125 | 8 | 7 | 11 | 7 | 31.7 | 936.6 | 5.7 | 4.1 |
| 1903.105 | 3 | 500 | 10.3 | 50 | 29 | 29 | 26 | 2 | 62.5 | 125 | 9 | 10 | 15 | 9 | 35.0 | 430.0 | 7.7 | 2.9 |
| 1903.101 | 3 | 1000 | 10.3 | 100 | 29 | 29 | 26 | 2 | 62.5 | 125 | 9 | 10 | 15 | 9 | 35.0 | 930.0 | 7.7 | 5.9 |
| 1904.105 | 4 | 506.66 | 13.8 | 38 | 39 | 39 | 35 | 3 | 62.5 | 125 | 12 | 10 | 15 | 9 | 33.3 | 433.0 | 7.7 | 5.4 |
| 1904.101 | 4 | 1000 | 13.8 | 75 | 39 | 39 | 35 | 3 | 62.5 | 125 | 12 | 10 | 15 | 9 | 33.3 | 933.4 | 7.7 | 10.7 |
| 1905.105 | 5 | 500 | 17.4 | 30 | 49 | 39 | 34 | 3 | 62.5 | 125 | 12 | 14 | 20 | 13 | 37.5 | 425.0 | 11.7 | 6.5 |
| 1905.101 | 5 | 1000 | 17.4 | 60 | 49 | 39 | 34 | 3 | 62.5 | 125 | 12 | 14 | 20 | 13 | 37.5 | 925.0 | 11.7 | 13.0 |
| 1906.105 | 6 | 500 | 20.9 | 25 | 59 | 49 | 43 | 3 | 62.5 | 125 | 16 | 18 | 26 | 17 | 37.5 | 425.0 | 15.7 | 9.9 |
| 1906.101 | 6 | 1000 | 20.9 | 50 | 59 | 49 | 43 | 3 | 62.5 | 125 | 16 | 18 | 26 | 17 | 37.5 | 925.0 | 15.7 | 19.8 |
| 1908.105 | 8 | 480 | 28.0 | 18 | 79 | 79 | 71 | 3 | 60.0 | 120 | 25 | 22 | 33 | 21 | 120.0 | 240.0 | 19.7 | 21.0 |
| 1908.101 | 8 | 960 | 28.0 | 36 | 79 | 79 | 71 | 3 | 60.0 | 120 | 25 | 22 | 33 | 21 | 120.0 | 720.0 | 19.7 | 42.5 |
Racks for Ground Teeth Surface. High Precision / Straight Teeth
Steel 1.0503 (C45) Pressure Angle 20°
High Frequency Quenching 50-55 HRC Quality 6
| The order no. | Module | LI | z | b | ha | h | f+0.5 | a | l | hl | dl | d2 | t | al | 11 | d3 | kg |
| 2002.105 | 2 | 502,65 | 80 | 24 | 24 | 22 | 2 | 62.8 | 125.66 | 8 | 7 | 11 | 7 | 31.3 | 440.1 | 5.7 | 2.1 |
| 2002.101 | 2 | 1005,30 | 160 | 24 | 24 | 22 | 2 | 62.8 | 125.66 | 8 | 7 | 11 | 7 | 31.3 | 942.7 | 5.7 | 4.2 |
| 2003.105 | 3 | 508,93 | 54 | 29 | 29 | 26 | 2 | 63.6 | 127.23 | 9 | 10 | 15 | 9 | 34.4 | 440.1 | 7.7 | 3 |
| 2003.101 | 3 | 1017,87 | 108 | 29 | 29 | 26 | 2 | 63.6 | 127.23 | 9 | 10 | 15 | 9 | 34.4 | 949.1 | 7.7 | 6 |
| 2004.105 | 4 | 502,65 | 40 | 39 | 39 | 35 | 3 | 62.8 | 125.66 | 12 | 10 | 15 | 9 | 37.5 | 427.7 | 7.7 | 5.25 |
| 2004.101 | 4 | 1005,30 | 80 | 39 | 39 | 35 | 3 | 62.8 | 125.66 | 12 | 10 | 15 | 9 | 37.5 | 930.3 | 7.7 | 10.5 |
| 2005.105 | 5 | 502,65 | 32 | 49 | 39 | 34 | 3 | 62.8 | 125.66 | 12 | 14 | 20 | 13 | 30.1 | 442.4 | 11.7 | 6.7 |
| 2005.101 | 5 | 1005,3 | 64 | 49 | 39 | 34 | 3 | 62.8 | 125.66 | 12 | 14 | 20 | 13 | 30.1 | 945 | 11.7 | 13.4 |
| 2006.105 | 6 | 508,93 | 27 | 59 | 49 | 43 | 3 | 63.6 | 127.23 | 16 | 18 | 26 | 17 | 31.4 | 446.1 | 15.7 | 10.4 |
| 2006.101 | 6 | 1017,87 | 54 | 59 | 49 | 43 | 3 | 63.6 | 127.23 | 16 | 18 | 26 | 17 | 31.4 | 955 | 15.7 | 20.2 |
| 2008.105 | 8 | 502,65 | 20 | 79 | 79 | 71 | 3 | 62.8 | 125.66 | 25 | 22 | 33 | 21 | 26.6 | 449.5 | 19.7 | 22.38 |
| 2008.101 | 8 | 1005,30 | 40 | 79 | 79 | 71 | 3 | 62.8 | 125.66 | 25 | 22 | 33 | 21 | 26.6 | 952 | 19.7 | 44.76 |
